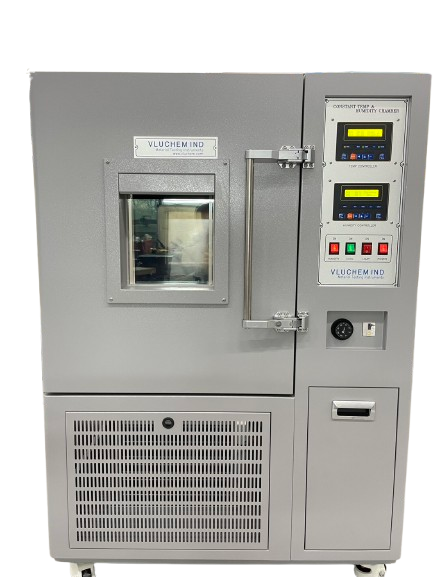

The 99-Liter Constant Temperature & Humidity Chamber is a precision environmental testing system designed to simulate stable temperature and humidity conditions for product development, quality assurance, and reliability testing. Equipped with a programmable LCD microprocessor controller, the chamber provides accurate environmental control to evaluate product performance under controlled climatic conditions.
เครื่องควบคุมอุณหภูมิและความชื้น Constant Temperature & Humidity Chamber สำหรับจำลองสภาวะแวดล้อมในการทดสอบผลิตภัณฑ์อย่างแม่นยำ รองรับงาน Environmental Testing, Stability Testing, Reliability Testing และ Quality Control พร้อมระบบควบคุมแบบโปรแกรมได้และบันทึกข้อมูลการทดสอบ
Additional information
Description
The 99-Liter Constant Temperature & Humidity Chamber is a precision environmental testing system engineered to create stable and repeatable climatic conditions for product evaluation, reliability testing, and quality assurance. By accurately controlling both temperature and relative humidity within a closed test environment, the chamber enables manufacturers and laboratories to assess how materials and products perform when exposed to specific environmental conditions over time.
Environmental factors such as heat, cold, and humidity can significantly influence the physical properties, functionality, and lifespan of many products. Variations in these conditions may cause dimensional changes, corrosion, degradation, condensation, cracking, discoloration, or reduced performance. A constant temperature and humidity chamber reproduces these environmental conditions in a controlled laboratory setting, allowing engineers and researchers to evaluate product durability before release to the market.
Technical Specifications
| Item | Specification |
|---|---|
| Capacity | 99 Liters |
| Temperature Range | 0°C to +80°C |
| Temperature Accuracy | ±0.5°C |
| Humidity Range | 30% to 90% RH |
| Humidity Accuracy | ±5% RH |
| Controller | LCD Microprocessor Programmable Controller |
| Temperature Display | Digital LED (SV/PV) |
| Humidifier | Evaporator Type |
| Interior Material | SUS430 Stainless Steel (1.2 mm, Polished) |
| Exterior Material | Powder-Coated Steel |
| Interior Dimensions | 400 × 450 × 550 mm |
| Exterior Dimensions | 600 × 850 × 1550 mm |
| Compressor | 1/3 HP |
| Safety | Over-Temperature Safety Switch |
| Door Seal | Silicone Magnetic Packing |
| Power Supply | 220 VAC |
| Power Consumption | 3 kW |
| Software | Temperature & Humidity Monitoring Software |
The Constant Temperature & Humidity Chamber is suitable for a wide range of environmental testing applications, including:
- Electronic component reliability testing
- Pharmaceutical and medical device stability studies
- Plastic and rubber material conditioning
- Packaging and shelf-life testing
- Food and beverage product storage simulation
- Automotive component validation
- Battery and electronic assembly testing
- Research and development laboratories
- University and academic research
- General environmental aging and durability testing
Key Features
- 99-Liter Test Chamber
- Compact design ideal for laboratory and R&D applications.
- Wide Temperature Control
- Temperature range from 0°C to +80°C for various environmental testing requirements.
- Humidity Control
- Adjustable humidity range from 30% to 90% RH.
- High Temperature Accuracy
- Temperature accuracy of ±0.5°C ensures reliable and repeatable test results.
- Programmable LCD Controller
- Microprocessor-based programmable controller allows precise temperature and humidity profile programming.
- Digital Temperature Display
- LED display simultaneously shows Set Value (SV) and Process Value (PV) for easy monitoring.
- Integrated Humidification System
- Efficient evaporator-type humidifier provides stable humidity control.
- Data Monitoring Software
- Includes software for recording and monitoring temperature and humidity throughout the testing process.
- Durable Construction
- SUS430 polished stainless steel interior with powder-coated steel exterior for long service life.
- Reliable Refrigeration System
- Equipped with a 1/3 HP compressor for stable cooling performance.
- Enhanced Safety Protection
- Built-in over-temperature safety switch protects both the chamber and test samples.
- Excellent Door Sealing
- Silicone magnetic door gasket minimizes heat and humidity loss during operation.
