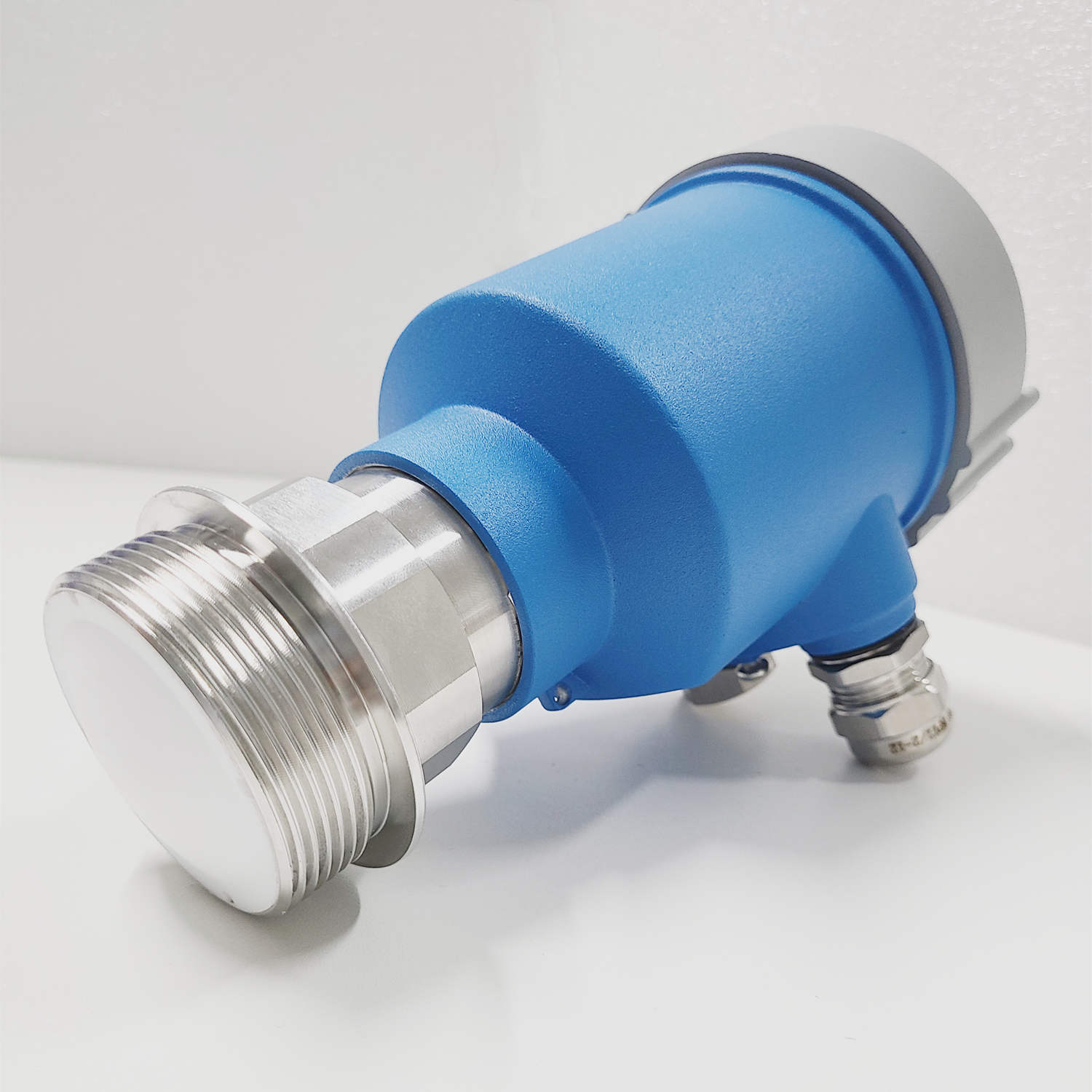

Radar Level Sensor(Fuel Oil Tank,Bulk Solids) Transmitter w/ FCC Certification - เรดาร์วัดระดับวัสดุของแข็งแบบ Non-Contact

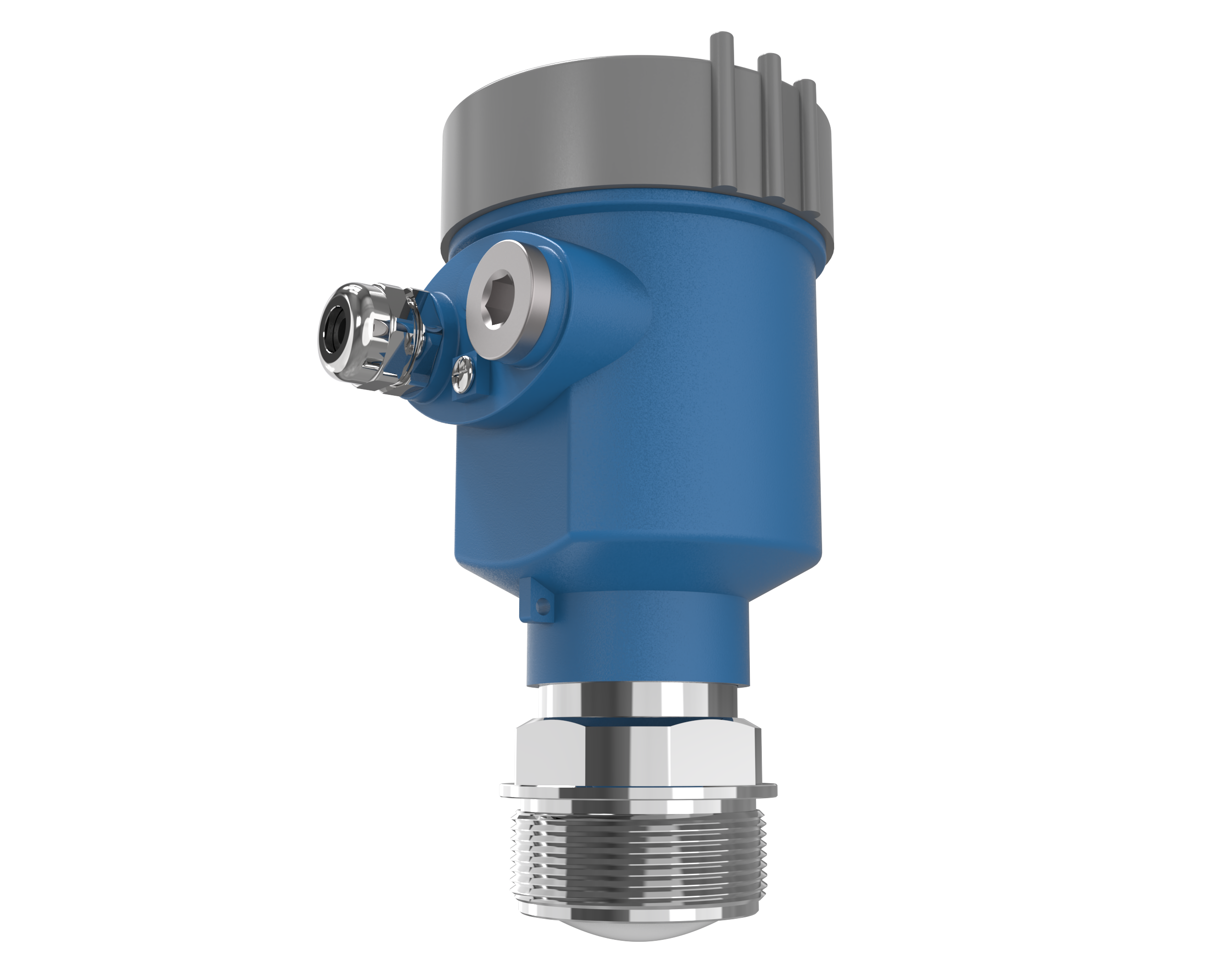

SKE 80G Hz radar level Sensor transmitter, high measuring accuracy, wide range and non-contact measurement, can be widely used in material level and liquid level measurement of various highly corrosive and dusty media. FCC Certified and highly quality guaranteed.

Radar Level Transmitter สำหรับวัดระดับวัสดุของแข็ง เป็นเครื่องมือวัดระดับแบบ ไม่สัมผัส (Non-contact measurement) ที่ออกแบบมาสำหรับการวัดระดับของวัสดุประเภทผง เม็ด หรือของแข็งจำนวนมาก เช่น ปูนซีเมนต์ เม็ดพลาสติก เมล็ดพืช ทราย หรือวัตถุดิบที่จัดเก็บใน ไซโล (Silo) หรือถังเก็บวัสดุ

Tags: , , , , , , ,

Additional information

Description

Principle
    Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a certain frequency difference with the transmitted signal. The distance information between the target and the radar can be obtained by measuring the frequency difference.Radar level transmitter, as a new industrial level measuring instrument, has the characteristics of high-temperature resistance, high-pressure resistance, vacuum resistance, strong penetration, temperature, steam, dust (lime powder), and other effects. capteur niveau d eau

Communication method : Two-wire system
Measuring range : 10 m,20 m, 30 m, 60 m
Accuracy : ±2 mm
Signal output : （4～20）mA，HART,Modbus
Power supply : DC 24V ( 22V~30V )
Ambient humidity : （0%～95%）RH
Explosion-proof : ExdIICT6
Protection for shell : IP65，IP67
Display : 128×64 LCD
Electrical connection : M20*1.5/1/2NPT
Weight : 1.2 KG
Size : diameterϕ96mm×Height221mm

  • For tanks
    Mounting point needs to be from the above of tanks, and no direct barrier between the directly below and the highest liquid level of the liquid (transverse partitions, drain plates, columns, etc.). Both reaction kettle and storage tank with stirring can be measured.
  • For medium
    Various solids with a dielectric constant greater than 2

Ambient temperature

-20″C ~ + 70*C

Ambient humidity

(0%~95%) RH

Explosion-proof

ExdIICT6



Protection
IP65、 IP67

Support a variety of signal output method

The measurement is not affected by changes in the medium, nor by
process conditions such as temperature, pressure, dust, etc.
Support 4-20mA, Hart, Modbus, etc. capteur niveau d eau



Easy to set up and debug

Simple commissioning save time, no need to fill or empty tanks.
Simple setting, only need to set two parameters to realize the
measurement..



Frequency modulation continuous wave

(FMCW), strong adaptability.
FMCW technology.
Suitable for measuring both liquids and bulk solids level.
High signal penetration for high steam and high dust applications.
Multi-language support, echo display, easy for maintenance personnel
to analyze and debug.



High precision ratio

Beam angle 39.
Measurement accuracy up to +2mm.

No Accessories data.

No Media Data.
