เครื่องตรวจสอบคุณภาพการซีล Seal-Scan®
Seal-Scan® เครื่องตรวจสอบการซีลด้วยเทคโนโลยี Airborne Ultrasonic (ABUS™) แบบไม่ทำลายตัวอย่าง ช่วยตรวจหาข้อบกพร่องและวิเคราะห์ความสม่ำเสมอของการซีลได้อย่างแม่นยำ พร้อมซอฟต์แวร์ภาพความละเอียดสูงสำหรับควบคุมคุณภาพ
คุณสมบัติเด่น
ตรวจสอบเชิงปริมาณที่เชื่อถือได้
ใช้ได้กับวัสดุทุกชนิด ทุกสี และพื้นผิว
มี 2 โหมดการสแกน: L-Scan (ตรวจสอบเส้นซีล) และ C-Scan (ภาพละเอียดเชิงลึก)
รองรับมาตรฐาน ASTM F3004-13
สามารถต่อยอดเป็นระบบตรวจสอบ 100% In-line ด้วย Seal-Sensor®
Seal-Scan® คือโซลูชันที่ช่วยให้บรรจุภัณฑ์มีคุณภาพ มั่นใจในความปลอดภัย และได้มาตรฐานสากล

Seal Quality Analysis and Testing
Seal-Scan® is a semi-automated X-Y axis inspection system designed to detect seal defects, characterize seal quality, and analyze packaging materials.
Based on Airborne Ultrasonic Technology (ABUS™), Seal-Scan® provides non-destructive and non-contact inspection of pouch seals. It is a deterministic, quantitative, and high-resolution method that ensures seal integrity and uniformity. Since the process requires no sample preparation and does not damage the package, it offers a reliable solution for quality assurance.
Advanced digital imaging software supports detailed process control, allowing users to visualize and analyze seal quality with precision.
Scan Modes
Seal-Scan® offers two scanning options:
L-Scan (Linear Scan): Simulates in-line defect detection by producing a line graph of seal integrity.
C-Scan: Delivers a pixel-by-pixel optoacoustic image of the seal, enabling detailed structural analysis.
Seal-Scan® complies with ASTM F3004-13, a standardized non-destructive test method for evaluating seal quality using ABUS technology developed by PTI.
Benefits
Deterministic inspection method with quantitative results
Compatible with all materials and combinations, regardless of color, transparency, print, surface finish, or porosity
Produces high-resolution optoacoustic images of seals
Enables comprehensive characterization of seal quality and uniformity
Technology
During inspection, the pouch or package seal is scanned between two focused ultrasonic sensors. Ultrasonic waves propagate through single or multiple layers of bonded materials. Variations in propagation cause reflection, attenuation, or signal loss, which directly correlate with seal quality.

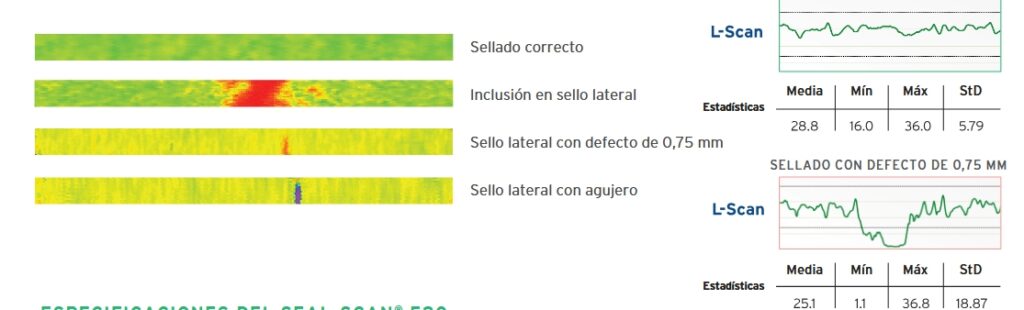

Defects caused by leaks, processing inconsistencies, or random faults can be detected. Seal-Scan® generates both optoacoustic images and statistical analyses using L-Scan and C-Scan modes.
L-Scan: A single linear scan along the X-axis of the seal that simulates in-line inspection with a line graph output.
C-Scan: Multiple scans along X and Y axes that produce a high-resolution ultrasonic image of the entire seal structure.
Seal-Scan® technology can also be integrated into production lines via Seal-Sensor®, enabling 100% in-line seal defect detection.
